Cummins has developed a unique suite of innovations to improve the performance and efficiency of heavy-duty commercial wastegated turbochargers. Using advanced computer modeling and real-world lab testing, the new approach has resulted in improvements in turbocharger efficiency of up to 6% and fuel efficiency of 1.5%.

The work has included development of a highly optimized mixed flow turbine stage and a revolutionary turbine exit diffuser design with wastegate flow control, and optimization of the compressor stage.

Jamie Archer, technical advisor at Cummins Turbo Technologies, says, “We looked at a number of developments on the turbocharger turbine which were the mixed flow turbocharger and the turbocharger diffuser, and some improvements on the compressor. As part of that, we also changed some of our approaches to turbocharger design.”

The new mixed flow turbine developed by the company has the characteristics of both an axial and a radial machine, providing a better match to the compressor so that the peak efficiency of the turbine moves closer to where the peak efficiency of the compressor is when operating on an engine.

“We have also considered the effects of pulsation on the turbine and how that can be used to improve turbocharger efficiency,” explains Archer.

“Traditionally we have used steady state analysis to model the pulsations of an engine, however thanks to greater computational power, we can now model the pulsating effect. This represents a step change to what we’ve done in the past and it gives us scope to improve turbine stage efficiency sufficiently well.”

Furthermore, optimization of the turbine diffuser through analysis-led design has enabled improved turbocharger performance as well as reduced back pressure on the engine. “If we are able to design the exit well we can improve turbine efficiency so stage efficiency is improved,” Archer says.

Cummins also looked at managing how the wastegated flow is reintroduced into the exit flow of the turbine, achieving a gain in efficiency of around 5%. “Even with the wastegate closed we are able to improve efficiency using this method by approximately 2%,” Archer notes. “Finally, we have done some work on the compressor stage as part of which we conducted an analytical study, which showed that by changing the geometry we could improve efficiency by 2%.”

The new innovations developed by Cummins have been detailed in a research paper entitled Advances in heavy duty commercial diesel wastegated turbocharger performance to deliver improved engine efficiency.

Archer adds, “We continue to develop our understanding on design for pulsation. That will include more computational analysis but will also look deeper at rules and tools around how to design turbines in those unsteady cases.”

 Cummins develops innovations to improve efficiency of heavy-duty commercial wastegated turbochargers

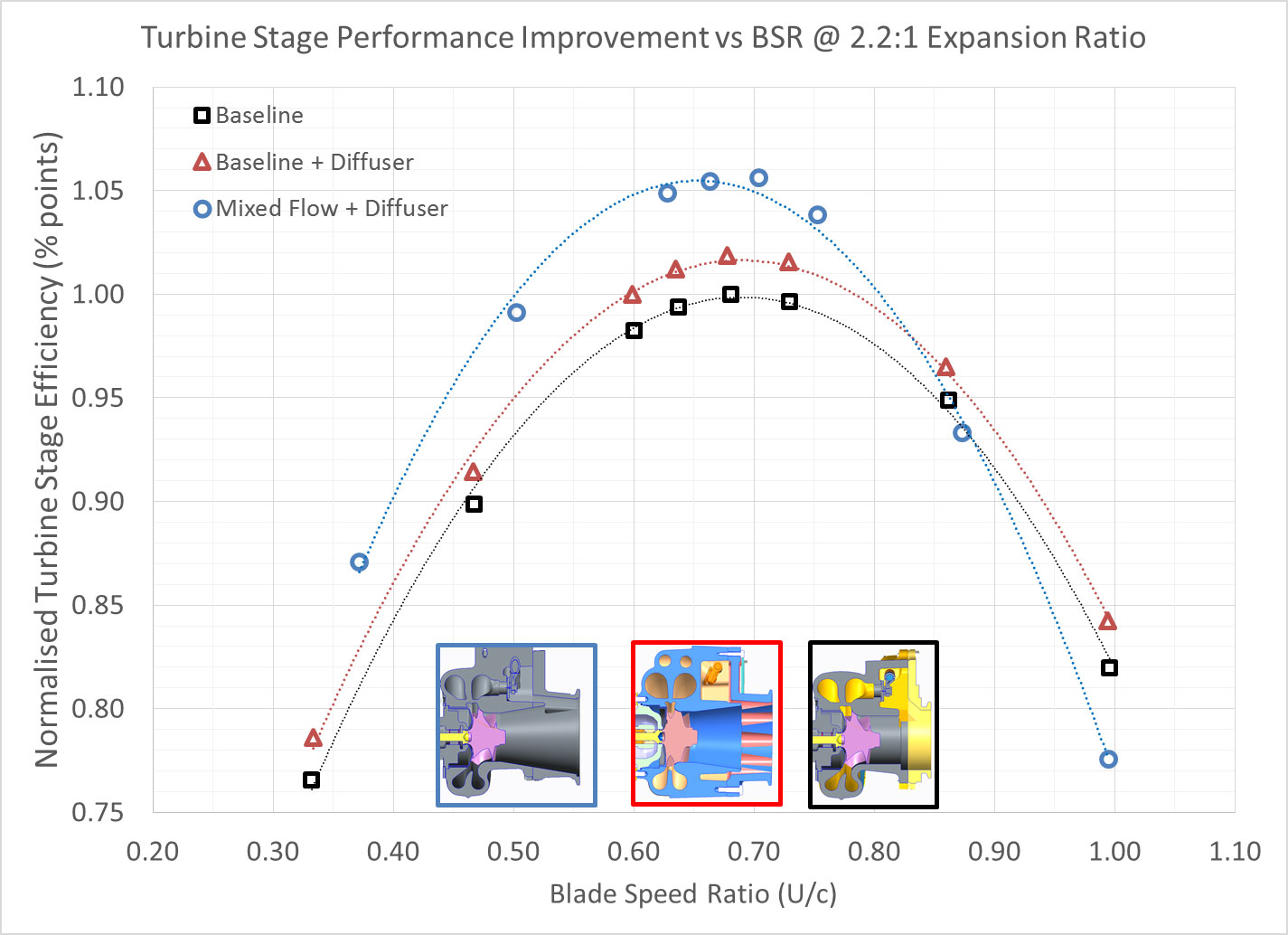

The graph shows the final comparison between the baseline radial turbine stage, the baseline with a diffuser and the mixed flow turbine stage. In this case all the turbine stages have a similar flow target and the inlet diameter is the same for both the radial and mixed flow turbines. The graph also shows the outline geometries for each stage for comparison. As can be seen from the plot the mixed flow turbine stage with diffuser is more than +5% points better in peak efficiency than the radial turbine stage.
