Toyota turns to BASF to achieve lightweighting goal on 2021 Sienna

LinkedIn +

BASF, the multinational chemical company, has collaborated with Toyota Motor North America, Research & Development, to achieve lightweighting improvements with the 2021 Toyota Sienna.

The vehicle, scheduled to launch later this year, recently won the Altair Enlighten Award for achievements in vehicle weight savings for reduced mass of the third row seat. In the previous model, the third-row seat comprised 15 different steel components, making it very heavy. Toyota wanted the 2021 Sienna’s third seat to be lighter and cost competitive while exceeding all performance criteria.

“Lightweighting doesn’t always have to be more expensive,” said Todd Muck, from the Toyota Technical Strategic Planning Office at the Toyota R&D Center in Saline, Michigan. “We were able to meet our cost objective and saved 15% compared to the prior generation. The seat is 30% lighter compared to the previous model. We had some great partnerships that helped us achieve these targets, one of which was BASF.”

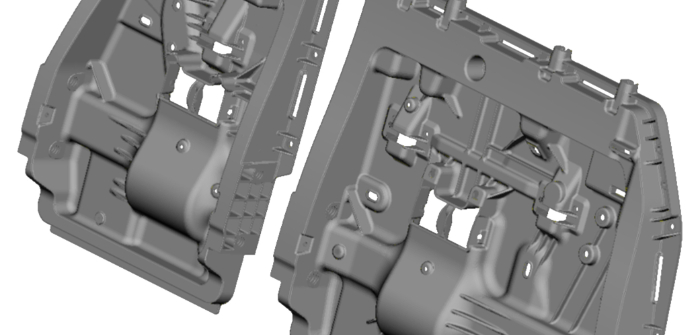

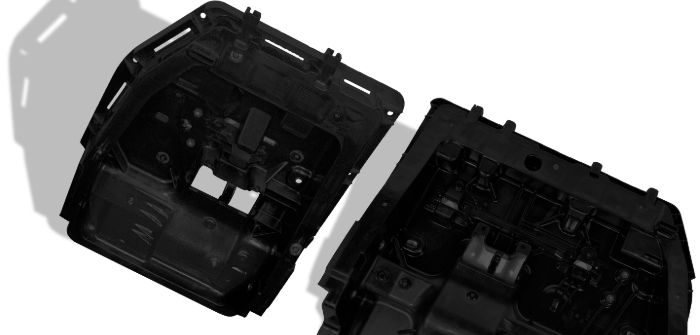

BASF said that traditionally, resin components for seating have had metal reinforcement that can add more cost to the process. Toyota also wanted an injection molding part that was a shoot-and-ship part – meaning it was made in one piece, without complex and costly post-processing. BASF used its unique 35% glass-reinforced and impact-modified polyamide PA6 grade Ultramid B3ZG7 CR, and its proprietary computer aided engineering (CAE) tool ULTRASIM, which the chemical company said allowed for accurate CAE simulations during the multiple phases of development efforts.

“The third seat design is what I would classify as an enabling technology,” said Matt Parkinson, manager, applications development engineering and composite technologies, BASF Performance Materials.

“It is the first of its kind in the way it is designed without inserts as a fully injected seat back. One of the challenges was to ensure a high elongation and impact qualities for the crash requirements. At the same time, we focused on strength and stiffness because the seat also serves as a load floor.”
